Lifting each other up – Interview with Naomi Larsson



Sometimes I forget that England is on a tiny island and the six degrees of separation is a common phenomenon in the UK music scene. A few weeks ago I’d had the pleasure of engineering a lovely band for the second time. As we chatted whilst packing down, we discovered that I admire the work of the lap steel guitarist’s girlfriend Naomi Larsson, writer of the recent Guardian article “You lift with your mind, not with your muscles.”

Not only is Naomi an award-winning humanitarian journalist with a hefty back catalogue of empowering and candid pieces on women in music, she’s an active musician and creator of a female-centred collective titled “Sister Rosetta’s.” Boyfriend Joe Harvey-Whyte kindly makes the introductions and the following week Naomi, and I meet for a chat in a relaxed coffee shop, hidden from the backdrop of a busy London afternoon.

The first thing we talk about is the previous Friday night’s gig – Naomi and Joe put on a sell-out show at Wilton’s Music Hall, which is the oldest surviving Grand Music Hall in the world, recently restored keeping the original features, complementing the theme of the night. The show was an ‘Americana’ live homage to the film Heartworn Highways and featured 13 artists including The Magic Numbers, Zak Hobbs (the grandson of Fairport Convention’s Richard Thompson) and Ren Harvieu from Bella Union. The event was co-promoted by Green Note in Camden, with an afterparty held at The Betsey Trotwood, who provided sound for the night. In order to emulate the vibe of late-night jams, the stage was dressed with barroom tables and chairs for the acts, and the technical setup was captured with condenser mics strategically placed on the tables.

Q: Friday’s show was a huge success, and it’s nice to see that 6 of the 13 performers were women. Was this a conscious decision for you and Joe when organising the project?

A: “It was a conscious thing in part to make sure there was a balance, but also they all are just amazing, so it’s not a token thing. The Magic Numbers played a big part in that as they’re 50/50 and then it just worked out quite organically as something that needed to happen. Heartworn Highways is a music documentary from the 1970s about all these outlaw country artists before they became famous, and the representation in that is awful – there’s only one song sung by a woman that’s a bit of a joke in it! It was important for us to show that’s not the case.”

Nothing about the musical contribution from the women involved in the show could be further from a joke, and while the full live recording of the show is under wraps, for now, I am privy to a gorgeous snippet from one of Naomi’s original songs, Where the Love Goes.

Q: How did you get into music and what hooked you?

A: “I started learning classical guitar when I was six but I was a way better guitarist when I was little than I am now!  A few years later, when I was a teenager, I played the electric guitar and bass a bit and then started playing chords on acoustic guitar more. When I was at Uni I wrote some songs and played a little bit and probably sang more than played, then in the last few years I’ve been slowly doing it again, and now I write and play way more which is really cool.  My sister is a couple of years older than me, and I was kind of copying her, and we’d write songs together, so she’s probably why I started playing and singing. I also fell in love with Laura Marling, and I guess when she started, she was very much singing and guitar, and it felt like there weren’t that many successful people around my age who were doing it at the time, so she was quite a big inspiration.  Then I gradually got more interested in country music, and now that’s more like what I play of my own stuff.”

Describing her sound as ‘blending new British folk with classic American country from the 50s and 60s’, Naomi plays as a solo singer/songwriter as well as front-woman of the house band at Jambalaya’s Honky Tonk Thursdays, which is one of the regular nights from the event management project she and Joe organise. With a full diary for the foreseeable, Naomi plans to record her solo material next year between all the events that keep her busy which “diversify life” and get her “away from the computer screen.”

Q: As a gigging musician, you decided to set up the female-centred collective “Sister Rosetta’s” which has both an online community and live events, creating a safe space for women to come and perform. What sparked the idea in you, and what is Sister Rosetta’s about?

A: “The more you think about it, the more you realise how embedded it all is, that culture and people just aren’t aware of it, and women too feel like we shouldn’t be in these spaces or we’re not the kind of people who should be playing this instrument. I was thinking about the general imbalance and where it all might stem from, and I guess it just came to me that it was such an everyday thing across all levels and ages. In guitar-based music, 90% of the artists are men, a gig at your local pub when you’re little is more than likely going to be men, so I get that you don’t think that’s going to be an option for you. The reason I started playing guitar was because my dad forced me to – it wasn’t a choice. I think that he had always wanted to play the guitar and then forced it on me and my sister; otherwise, I don’t think either of us would have taken it up because it didn’t seem like something that was for women. It’s the same with the guitar shops when you’re a girl and wanting to buy your first guitar; it’s scary going into a place where it’s mostly blokes there that are gonna patronise you. I had this connection with the Betsey Trotwood venue because that’s where we used to do “The Honky Tonks” (the previously mentioned country music night) and already knew that they were a really friendly pub. I knew I could use that link for something positive because I just got really bored going to nights, especially singer/songwriter nights, and it was just a load of white men who all sounded the same.

I think diversity brings more interest in music, and what you can do on more of an individual or grassroots level is open some spaces to make little changes, so you can make sure you buy music made by women and support them, go and see women playing gigs in your area, or you can put on event in your area if you’re able to that promotes women and gives them these spaces because I think that’s what’s fundamentally lacking on a non-professional or more amateur level getting into it and starting. When you feel like that space isn’t for you, if you make that space, it gives women the confidence and ability to do it in a safe environment which I think is really important.  It’s partly a confidence thing, and it’s also a safety thing in the Sister Rosetta’s stuff and what is so nice about it is that it’s always such a respectful audience – people listened, and they appreciated the music, and there was a special vibe there.” Naomi laughs and clarifies, “People have said that! I’m saying that objectively, there was a nice vibe!

Interestingly, the one time there was an issue was from a guy who works in music, he was there in the audience, very wasted, and he shouted a few times over a young woman who was playing, asking if she was single and was being very drunk and lairy. I said to him that if he was going to behave like that then get out, because that’s not what that is for, and I didn’t want to create an environment where people thought that was an alright thing to do. While he responded and behaved better after that, it made me really upset because you just can’t get away from it at all. On the Sister Rosetta’s team, we always had a female sound engineer, and my friend she designed the poster, it was very much a package of ‘we can do this.’ I also hoped that from doing it, people would get more work and it could be used as a sort of larger thing.”

The Sister Rosetta’s online community and newsletter are open and available while the live events will be starting back again in the new year after a short break.

As well as the active events Naomi runs and performs, she does a lot for the cause of women in her journalism. While there have been recent studies and conversations on the frequent imbalance of superstar festival headliners, Naomi felt strongly about the everyday interactions at smaller venues and so decided to research and write a story for The Guardian whereby she found all of the gig listings for one day across the UK and counted how many men and women performers there were listed: 69% of all acts were made up entirely of men, 9% were female-only, and half of those were solo artists. “I kind of expected it, but it’s still a bit bonkers!  I felt that I wanted to do something about that but in a more tangible way, because I think writing is really important, but it is kind of true that people just read stuff and it might have some traction for a day, but then people move onto the next thing”.

While I tell Naomi that I disagree and feel the power of her writing has the ability to stay with people, I also admire how she was able to channel her feelings into something practical in both her writing and Sister Rosetta’s. We discuss the aim to normalise groups such as these so that it gets to the point where they’re not needed anymore, so that representation and safety is much more accepted in the mainstream at all levels. Naomi tells me that since the article, she’s aware of more pockets of groups in the area with the same ethos springing up all the time: “There’s a really great organisation group called Soul Stripped Sessions, and it’s not exclusively a BAME events collective, but they’re well represented, and that’s really cool, there’s another one called Herd which started a little after I started mine that is really good, so there are little microcosms of people with the same aims trying to do this, which is really positive and nice to see.”

Q: The recent Guardian feature you wrote about women sound engineers went down a storm in audio and music circles and the SoundGirls community! So many of your articles that centre around women’s rights and women in music resonate deeply with your readers. What inspires you to write about the topics that you do?

A:  “I’m really glad to hear that it had some traction, that’s really great.  The Women in Engineering article was part of a supplement that they were doing about engineering in general, and so I pitched the idea about sound engineers and then did the case study. I think it’s really wonderful to be in the position to write what you care about and I’m lucky that I can do that.  I think once you have a skill or a craft, it’s really worth it to use that to some kind of benefit and to give a platform to these issues as well. I think there should be more stuff done on not only the face of the music, and would really love to do a podcast in the future. It’s really interesting to write about it, though I wouldn’t call myself a music writer because I’ve never done reviews or anything like that, but these kinds of issues of representation or gender imbalance are the things that I really care about, and I think that by writing about it you can create conversations which is important.”

I argue that Naomi is a music writer and is way too humble on the importance of what she contributes; her Huff Post article on catcalling won an award this year. She counters, “I need to do more. I did say to myself that I was going to do more, but I haven’t.  Also it’s kind of difficult to sell these stories as I’m freelance, so whilst you might want to write about something, you’re pitching to editors who maybe don’t have the space, money or interest to commission pieces like that, so that’s a bit trickier, which I’m sure loads of freelancers have experienced, where you want to write about something. I’m on a bit of a mission to focus on Women in Music, and I guess I did pursue that by doing the Sister Rosetta’s but just didn’t do it in so much of a writing way, because much as I would have liked to have done more articles, I put more energy into doing the gigs, but there’s always time in the future to do more about it. It’s not going away.”

Q: What advice would you give to any young women and girls wanting to do any of the things that you’re doing, whether in the music or writing world?

A: “Find someone that you respect and like their work and get in touch with them and see if they want to go for a coffee or something, cause I think that most people do, most people want to help someone else. That can be really important to get some good advice from them and not feel so alone. In terms of music, just keep at it and find a special place where you can feel safe and confident to do the music that you wanna do. Again, find other women doing the same thing.”

It’s been a real pleasure spending the afternoon sharing stories and hearing all about this fascinating woman’s work. I could happily stay and chat with Naomi for the entire evening, but for now we must part ways and run across town to our respective gigs; Naomi is playing at a craft beer festival, and I’m off to work, curious about where and when the six degrees to women making an impact will strike again.

You can catch Naomi next playing at Green Note on 10th September, tickets at www.greennote.co.uk





Combatting Nerves

Being nervous happens to us all. Whether we like it or not, nerves are a very common part of life.

If you have a job in music, whether that be as a performer, live sound technician, etc. there can often be a lot of pressure for things to be right and to run smoothly. Therefore, creating a considerable amount of stress to get the job right.

So, as the feeling of being nervous is inevitable, I’ve compiled a few essential tips to help calm those nerves in a time of need.

Breathing

As a performer, it’s common to start second-guessing yourself moments before a gig. For example, I’ve stood many times at the side of the stage asking myself, ‘What on earth are my first few lyrics’!

What helps in these moments of sheer panic is to remember to Breathe.

Focus on taking long breaths in and out.

I watched a clip of Beyoncé warming up before a show where she and the crew all stood in a circle reciting ‘Breathe in positivity, exhale anxieties’ and just repeating it several times. So, if it’s good enough for Beyoncé, it’s good enough for me.

Make Sure you have Spares

As a performer, producer, or live technician It’s always useful to carry spares of your essential kit.

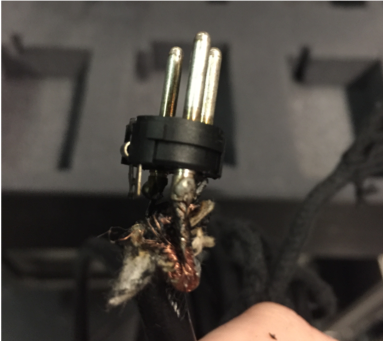

I’ve worked many jobs where a microphone cable has stopped working, or a performer has forgotten to change the battery in their guitar.

To avoid unnecessary stress, I like to keep spares of almost every essential item I’ll be using on the job. This means extra leads, extra batteries, spare microphones you name it.

This leads me on to my next point…

Be prepared

No matter what your role is on the day. The best thing you can do is be prepared.

Whether that means practicing your set until you know it by heart or preparing all the equipment a few hours before the show and checking if everything is in working order.

This I find really helps with the nerves, as it removes the pressure of the unknown. When you trust your equipment and your preparation, you can trust yourself.

These are just a few tips I find to be very helpful when on different jobs and hopefully can be of some help no matter the job.









FOH Lisa Affenzeller – Chasing the Magic

Lisa Affenzeller is an independent FOH Engineer, who works mainly with Heavy Metal bands, such as Butcher Babies, TesseracT, Kobra & the Lotus, Devin Townsend Project, Overkill, Annihilator. She has been working in the industry for over ten years.

Growing up Lisa had always wanted to work and be a part of live shows “Every show you do has that little magic that lies within that kicks you, and you know that you love what you do.” She had a love for music growing up, although she never had much interest in actually playing an instrument. Lisa would attend SAE in Vienna and graduate with a degree in Music Production and had the full support of her parents. She says, “they love the technical aspect of my job as well as the traveling.”

After graduating she moved between a few cities across Europe before ending in Hamburg, Germany. Lisa would make ends meet with office work, stage managing, soldering, anything to get a chance to mix some smaller shows or opening bands. Allowing her to start working in small and mid-sized clubs all over Repperbahn and give her confidence in mixing live sound. It would also put her in the right place at the right time.

Starting in the clubs taught Lisa the ropes. First, she interned, then assisted, and then got to mix a few bands. From there she would start working at various clubs where she learned system engineering, mixing FOH and Monitors, stage managing, patching. And maybe more importantly how to put in long hours, fix broken equipment, and how to deal with artists and characters from all over the world.

Lisa would find herself in the right place at the right time and was able to start touring on the club level where she would learn how to mix on every possible console and PA, and how to get it set up quickly, and sound good. Although she found it intimidating at first, she now finds it fun.

Some of the challenges Lisa has faced while touring are gear breaking or failing. She says, “it sucks for sure, but it happens to the best of us, and it can happen at any time. It’s just a matter of how you deal with it and how fast you can troubleshoot, and that – again – comes with experience.

She elaborates “One time I had a massive show stopper happen on a big club show in Germany during a tour through Europe. One of the photographers in the pit accidentally broke one of the main Cat5e lines, and I was using the spare CAT5e connection to run my show on 96kHz (which, in hindsight, was super unnecessary). I had no backup and after six songs into the set and the cable broke, more than two-thirds of my input channels were not passing audio anymore — almost a total blackout. After we found out what exactly had happened, the audio team and I rearranged the patch together. We trimmed down the channel count and moved on with the show on a spare CAT5e line that we had with us.
I overcame the situation by staying focused (luckily during that time I had so many shows under my belt already I could remain calm), the team effort within the crew, support from my tour manager and indeed a lot of love and understanding from the fans around me. One of the guys in the audience even thanked me and bought me a drink.”

Lisa also finds festivals bring unique challenges. “Very often you don’t get a soundcheck and sometimes even just a 20-30min changeover time in which you have to set up the stage and line check the show and then go for it and fix a solid mix in the first couple of minutes of the show. It’s stressful for sure and challenging, but it’s possible. The upside to festivals is enjoying the other acts and getting to hang out with roadies and friends from around the world.

What do you like best about touring?

The fans, for sure! And also, the bonding you experience when you work and travel with a terrific group of people is priceless.

What do you like least?

White bread & cheese.

What is your favorite day off activity?

Exploring local bars & restaurants!

What if any obstacles or barriers have you faced?

I think the biggest obstacle that I have faced in my career was my constant fear of failure and lack of trust in myself.

How have you dealt with them?

I have been fortunate with having had people in my life who believed in me more than I did and gave me chances. There might be a grain of truth in it when they say you have to work twice as hard being a woman, but when you do, and you cut your teeth on it, and you are willing to make some sacrifices, it’s absolutely worth it in the end.

The advice you have for other women and young women who wish to enter the field?

You will eventually need to take that leap of faith and leave your safe haven back home to enter the touring world.

It sounds like a platitude, but you have to believe in yourself, it’s really true. You will work with a lot of shitty bands, and you will have a lot of bad shows, but you will also have A LOT of perfect shows, and they will love you for it.

You will make mistakes, and you will learn from them. Your ability to troubleshoot will get better, and so will your confidence. You will hit rock bottom, and you will stand up again. And before you know it, you’ll become a kick-ass sound engineer.

Must have skills?

Apart from the obvious, such as knowing your gear, I’d say being communicative is a big plus. And confidence & thick skin.

Favorite gear?

DiGiCo SD Series
DPA 4099 & 2011
Waves SSL G-Master Bus Compressor
Waves C6 & F6
Waves H-Delay
MANLEY Voxbox
BAE 1073
JH Audio In Ears
And a very special shout out to my Leatherman and my pink Peli

Find More Profiles on The Five Percent

Profiles of Women in Audio

Missed this Week’s Top Stories? Read Our Quick Round-up!

It’s easy to miss the SoundGirls news and blogs, so we have put together a round-up of the blogs, articles, and news from the past week. You can keep up to date and read more at SoundGirls.org

August Feature Profile

https://soundgirls.org/rising-producer-engineer-lauren-deakin-davies/

Transitioning in the Music Industry


The Blogs

IEM Maintenance & Troubleshooting

Impulse Response Testing and Field Recording

Moving to London to Pursue Media

Internet Round-Up



SoundGirls Events



An Evening with Lenise Bent



Bay Area Chapter Monthly Meetings

Ableton Live for Anybody – 4 Session Online Course


SoundGirls Opportunities


SoundGirls and SoundGym

Sound Particles Licenses Available

Meyer Sound Supports SoundGirls


SoundGirls Resources


Spotify and SoundGirls Team Up – EQL Directory

SoundGirls – Gaston-Bird Travel Fund

Letter for Trades and Manufacturers


Women-Owned Businesses

A More Inclusive Industry

Events

Sexual Harassment

https://soundgirls.org/about-us/soundgirls-chapters/

Jobs and Internships

Women in the Professional Audio

Member Benefits

IEM Maintenance & Troubleshooting

The Glamour Starts Here

Special thanks to Josh Thomas for all his help with writing this article.



A few years ago, I went to a talk about mixing for in-ear monitors (IEMs), given by one of the top monitor engineers in the UK, Mr. Justin Grealy. As someone who mainly worked in-house, but had to accommodate more and more acts turning up with their own IEM systems, I was intrigued to learn as many tips and tricks as possible to give artists great mixes. I was not expecting most of the hour to be taken up with all the different ways to get earwax out of an IEM. Some were admittedly genius – hairdryers were mentioned at one point – but I didn’t understand at the time just how important good IEM hygiene and maintenance is for a successful mix. No amount of volume, pretty effects or space-creating trickery will make up for the sound being muffled by a wall of wax, or cutting out because of dirty connections.

IEMs can be the biggest purchase you make in your early career, so it’s worth taking the time to find the right ones for you. If you need them to work with the same act regularly, try to get the same make and model as they use (or the main person uses if they all have different ones). The goal is to get as close as possible to what they hear. Discuss with management whether their budget will cover part or all of the cost.

If you need them for one-offs or working in-house, get the best quality that you can afford. It can make a massive difference to what you hear, and so how well you can react and make subtle adjustments in a mix. Generic IEMs are cheaper and quicker to buy than a custom moulded pair, but getting a custom fit will properly seal the IEMs against the ear canal, which helps with isolation from external noise and provides a better bass response. If possible, go to a local IEM dealer and demo a few different ones before you decide. Remember, you want the ones that will reproduce the signal most accurately, not the ones that sound nicest (e.g., if the pair you have are rounded off in the higher frequencies, your mixing could sound too harsh to people who have IEMs with a flatter frequency response).

Regular cleaning of your and your clients’ IEMs is essential. Small grains of dirt on an IEM can make their way into your ear, scratch the delicate skin in the canal and lead to infection and swelling. Dirt, sweat, and wax can block the drivers’ tubes, corrode the connections and even end up in the tiny and sensitive electronics, causing damage. I would like to say if you take good enough care of them, they can last you a lifetime, but custom moulded IEMs should be replaced about every four years. The shape of your ear canal changes subtly throughout your life, so after a few years, the fit won’t be as exact and will stop forming a seal. Specialist gels like Auragel or foam wraps like Comply can help to form the seal again, but they are only a stopgap solution. Once you notice your IEMs loosening it’s time to get a new pair, from a new fitting, not the measurements the IEM company may have kept on file (these are for replacing lost or damaged IEMs).

The central part of cleaning IEMs is removing wax from the tubes that lead from the drivers to your ears. Your IEMs should come with a loop of wire with a plastic handle for this, but if they didn’t, or you lost it, or the wax is further down the tube than it can reach, there are a few do’s and don’ts you should bear in mind.

First, be gentle. Keep a close eye on what you’re doing and be careful not to damage any filters or circuitry inside the IEM. Don’t use anything that might break off and get stuck in the tube! Mechanical pencils look kind of perfect for this task, but they are a terrible idea. Also, avoid using anything pointed or sharp, like a needle. You could scratch the moulding, making tiny grooves where more wax and dirt can build up, and potentially where bacteria can fester. Using a loop, optionally followed by a specialist earwax vacuum, is the way to go. I try as much as possible to hold the IEM upside down, so any wax that gets dislodged falls out instead of further into the tube, and I use a gentle scooping motion, at an angle, to get behind the wax and bring it back out instead of risking pushing it further in. Compacted wax blocking a driver can render an IEM useless, and it can be costly and time-consuming to send back to the manufacturer to fix. I then clean the outside of the moulds with alcohol swabs.



Cleaning an IEM with an earwax vacuum, nozzle inserted at an angle



If one ear keeps cutting out, look at the connections between the cable and the IEM. It might merely be loose, but check that there isn’t any green or black stuff at the pins or in the socket. Black is most likely dirt, but green is corroding copper, usually caused by sweat. Cleaning this off with a cotton bud (Q tip) dipped in alcohol or contact cleaner (being careful not to let any liquid get into the body of the IEM) can fix this, but you need to prevent it happening again. Leaving the IEMs to air out after use, keeping a small sachet of silica gel in the case, and checking them regularly can help. If the owner likes to wear their IEMs in the gym, tell them, it’s time to invest in standard earbuds, or it will become a costly habit!

Two different brands of IEM with their respective cables. On the left, the socket is recessed into the casing where two dots can be seen, on the right, it is the area in black. There is no evidence of dirt or corrosion.



If the ear connections are fine, the minijack connector or belt pack socket might be dirty or corroded and can be treated in the same way. The minijack has to be fully seated for both ears to work. If the right side is intermittent, but the left is fine, the jack might be pulling out of the socket slightly, so the right side’s ring no longer makes a connection. Leaving more slack on the cable or taping it in place should help. If it isn’t the jack, gently wiggle the cable as you’re sending signal, to see if there’s a weak spot. IEM cables can get abused, being yanked and pulled during costume changes, snagged on door handles, crushed in their cases. It is wise to carry spare cables for each type of IEM you have so you can swap them out straight away if there’s a problem. Don’t wait until you need one, because it can take weeks to get them, especially at busy times of the year.

If the above steps don’t fix your problem, it might be an issue with the pack or radio frequencies, which is outside the scope of this post. If one ear has lost a big chunk of its frequency spectrum, or it sounds like it’s distorting at low levels, one of the drivers might have blown and will need to be sent for repair. Another reason to keep an eye on your bandmember’s pack volume levels and to mix responsibly!

There are all types of little gadgets and supplies you can keep with you to help with IEM maintenance and troubleshooting. IEMs and hearing aids have a lot in common, and it’s worth checking out audiologist suppliers as well as IEM specialists for things like cleaning loops, ear wax softener and earmould stetoclips (like a stethoscope for hearing aids). Always have plenty of alcohol/anti-bacterial wipes to hand, and thoroughly clean each piece of equipment between IEMs with a new swab to reduce the potential for cross-contamination and general grossness.

Whether the thought of dealing with other people’s earwax turns your stomach, or like me, you find cleaning IEMs strangely satisfying; it does more than keep your equipment at its best. It’s always good to get a reputation for being helpful and useful, and you can spot potential problems before they develop. It’s much easier and safer to deal with issues in your downtime than halfway through a show. It can also be an excellent opportunity to start the conversation with clients about anything they’ve noticed about their IEMs but hadn’t thought to mention, or how they’re dealing with volume levels and looking after their hearing in the long term. For example, increased earwax production can be the body’s defense against sustained, overly loud listening volumes. Showing that you’re interested in their hearing health now and in the future, and willing to go the extra mile, can cement your relationship and improve trust and communication, which will do more for your mixing than any effects unit ever could.

Missed this Week’s Top Stories? Read Our Quick Round-up!

It’s easy to miss the SoundGirls news and blogs, so we have put together a round-up of the blogs, articles, and news from the past week. You can keep up to date and read more at SoundGirls.org

August Feature Profile

https://soundgirls.org/rising-producer-engineer-lauren-deakin-davies/

Transitioning in the Music Industry


The Blogs

How Do You Go About Setting Up Your Console Workflow?

Production Communication

Community

Internet Round-Up


At home with Sheryl Crow, a widely beloved, and wildly underappreciated, rock star

Sheryl Crow ultimately self-produced the album at a time, she said, “when nobody would let a woman produce their own record, when it would be [viewed as] crazy to waste money on that.”Trina Shoemake won a GRAMMY for engineering the album.




Musiq Scene: Jess Fenton: Jess Fenton, Producer/Engineer/Mixer at Fenton Music Productions.




SoundGirls Events



An Evening with Lenise Bent

Bay Area Chapter Monthly Meetings

Ableton Live for Anybody – 4 Session Online Course


SoundGirls Opportunities


SoundGirls and SoundGym

Sound Particles Licenses Available

Meyer Sound Supports SoundGirls


SoundGirls Resources


Spotify and SoundGirls Team Up – EQL Directory

SoundGirls – Gaston-Bird Travel Fund

Letter for Trades and Manufacturers


Women-Owned Businesses

A More Inclusive Industry

Events

Sexual Harassment

https://soundgirls.org/about-us/soundgirls-chapters/

Jobs and Internships

Women in the Professional Audio

Member Benefits

Production Communication

Comms, a necessary evil

Comms are, without a doubt, integral to a production’s success. Whether it’s over a radio or full-duplex communications, comms are a necessary beast. As a sound engineer, A1, A2, production manager, producer, etc. I have worked extensively with various versions of communications technology. I will focus on tech that is not brand new, mostly because that is far more common than shiny new systems. New comms systems are as rare and magical as unicorns.

Comms systems allow a production crew to speak to each other instantly. Many of my students question, especially after seeing how the equipment LOOKS, why don’t we just use phones and text? Aside from service issues inside buildings, battery life, distractions of other apps while working, etc., the main reason for me is that using a mobile just isn’t practical or professional. How many times have you had issues with a text going through? Depending on your network, this can be a frequent and annoying issue. Portable communication systems allow me to set up a reliable network of people within minutes. Hard lines ensure fewer problems than wireless (although I’ve had my fair share of bad cables and mini fires). TEST EVERY COMPONENT before the show. Seriously. Do it. These devices are MADE to take a beating, but they are not immune to damage. They are hardy little boxes, especially compared to my glass-covered iPhone.



Handbook of Intercom Systems Engineering

This PDF guide, The Handbook of Intercom Systems Engineering, first edition, Copyright© 2007 by Telex Communications, Inc is your magic textbook to all things comms. I frequently refer this to my students as a resource, and although it was published some time ago, I still find it to be completely relevant in the scope of existing installations. This document is my BEST advice to learning comms, troubleshooting, and designing systems based on your needs. Clear-Com and RTS have been around since the 1970s, and I believe some of that original equipment is probably still in circulation. While petitioning for new comms systems, most of the responses I have personally received involve “if it ain’t broke why fix it?” or some variation of that phrase. Most times, I am cobbling together a system from half-functioning components, which is frustrating and not the most helpful for such an important system. Comms aren’t sexy though, so many people aren’t eager to replace them.

Party Lines

Party lines sound way more fun than they actually are in real life. A party-line system is probably what most of you have encountered already. This system allows a group of people to communicate and have conversations. There is no limit to who is allowed to talk at a specific time, aside from etiquette, and there is generally no privacy.  A typical setup will include a power supply, XLR cables, belt pack user station, and a headset. RTS comms are a two-wire system, meaning that you can have the same path for talk and listen, and two separate party lines. These are more commonly found in TV production and sporting events. Most user stations will be connected in parallel, although having a splitter can help when you need to go separate ways.

Equipment

There are so many options for comms equipment, and this will vary based on the manufacturer and your production needs.

A Power Supply is necessary for most comms equipment unless it comes with its own PS. For RTS, the PS20 is a standard power option.

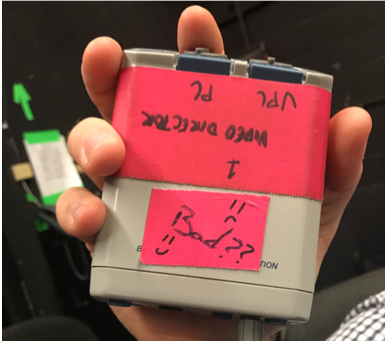

Belt Pack User Stations are individual, portable comms stations. These require power from a power supply.

A Main Station is rack-mounted user station, which will also require power from a PS.

Master stations are rack-mounted stations, combined with a power supply.

A Biscuit Box is a portable speaker station, which will require power from a PS.

Headset types: Single Muff, Double Muff, Phone Handset, Biscuit box.



Source Assignment Panel (SAP) is integral for larger productions. This allows up to 6 sources (Party Lines) and 12 selectable outputs (to people). Each user station can have two PLs. An SAP will give your production more selective communications so that each department isn’t talking over each other. If you have a video team, they need their own PL for the Director, Producers, TD, Cameras, Floor Manager, etc. They don’t need to hear about any issues from monitor land.

Who needs to be on a headset?

Paperwork and organization is a big part of the job of an A2. Anyone who needs to execute a cue at a specific moment needs to be on a headset. Who needs which type of equipment? Where are they located? Who do they need to speak with while on a headset? TV Broadcast gigs will have a lot more people on a headset than a concert or theatre event. For larger portable events, I will employ additional equipment, including a Source Assignment Panel. An input list for comms will help keep track of everyone. I will label the BP for each person; keeping organized is key! Using their names/titles for labeling is a good practice. If you don’t know, you can ask them. Communication is key. (Obviously.)







How Do You Go About Setting Up Your Console Workflow?

Once you start mixing more than a few shows, you’ll start to find that you have some preferences in how your console is laid out.

Everyone has a particular way of doing things, and it’s all a matter of what works for you. For instance: How you do your input patch will determine where things show up on the surface.  It doesn’t have to be 1 to 1 with the snake patch; you can patch inputs to come up in whatever channels you like.

If you are mixing on a digital console with a limited number of faders available on the surface, you’ll have to think about how you want your inputs to populate them.  If you have 42 inputs and only 16 input faders/layer, how do you want to build your layers?

It’s a good idea to have all of your drums on the same layer or page so you can easily make adjustments to the overall drum mix. Likewise, if you have numerous inputs for keyboards and tracks, keeping them on the same layer or page makes for easier control.

Something I like to do is keep my most important inputs on the channels closest to the master section. For most of what I mix, this is the lead vocal or vocals. I rely heavily on VCAs/DCAs and do most of my mixing from the master section where they are found so having my most important inputs right next to the VCAs; they are always where I need them.

When I was mixing the bands Styx and Mr. Big, the music was heavy with 4 part vocal harmonies.  I would always lay out my console to make sure that the four vocal channels were right next to the master section and able to be pulled to the surface in an instant. It wasn’t a set it and forget kind of mix; there was constant massaging and blending of the vocals.

Keeping important inputs near the master section stems from the days of large frame analog consoles where inputs could be spread out over quite a distance.  But I find it still works well with digital boards and tends to keep things that need lots of attention close to that area of the console.

Other things to think about are your effects returns. You might want your effects returned in channels rather than the FX returns.  Using open channels instead of dedicated FX returns for your Effects will generally give you more flexibility in routing and better EQ options.

All of these things will be determined by your input patch, so give it some thought ahead of time.

Next, consider how you will designate your VCAs/DCAs and/or Groups. Think about how you can group things to make it easier to mix.  It’s much easier to mix from the 8 or so VCA faders than all of your individual channels, especially on smaller consoles that only give you eight input faders on the surface.

If you’ve got 42 inputs, you don’t want to have everything just assigned to L and R and be mixing on 42 faders jumping through layers or pages all night.

Things can be double assigned.  What I like to do is have one VCA,  that I label BAND for all of my instruments. I tend to set up my VCAs along these lines:

Every input goes to its intended VCA- drums to drums, bass to bass, etc., but is also assigned to the band VCA, except for the vocal channels.  This way, I have control of the overall level of the band with one fader, which is incredibly useful if I am having trouble getting the lead vocal above the music.  I can just grab the band fader and bring everything but the vocal back a bit.

Now if you have a four-piece band with 16 inputs total, this isn’t such a big issue.  But still, it’s much easier to mix on 4 VCAs than 16 channels. The more involved your show gets the more thought you’ll need to put into it.

Think about what your needs are?  What will help you be as efficient as possible, and what will give you the control you need?

Groups are great for processing multiple inputs at once.  Smaller analog consoles may only have Sub Groups available and no VCAs.  You can assign all of your drum inputs to a stereo group and insert a couple of compressors across your drum mix for a little added punch to your drum mix.  You can send multiple background vocals to a group and compress them so sit together nicely.

You’ll also want to consider AUX buses.  If you are doing monitors from FOH you’ll want the aux buses to be Pre Fader and depending on the console; you may only have the option of certain aux buses being Pre Fader.

Which Auxes will be for monitor sends and which will be for effects?  How many effects do you need? If there are enough available, it’s a good idea to have separate effects for different inputs.  For example, have one for drums, a different one for vocals and yet another for instruments like keys and guitars if needed. This gives you more control and allows for more clarity in the mix.

These are just a couple of things to think about when you are setting up your workflow on the console.  For me, I build my workflow around control and efficiency, but you may have other ideas, and I’m curious to hear what works for you.

For more from Michelle, check out Mixing Music Live

Missed this Week’s Top Stories? Read Our Quick Round-up!

It’s easy to miss the SoundGirls news and blogs, so we have put together a round-up of the blogs, articles, and news from the past week. You can keep up to date and read more at SoundGirls.org

August Feature Profile

https://soundgirls.org/rising-producer-engineer-lauren-deakin-davies/

Transitioning in the Music Industry


The Blogs

Audio Tips For The Top High School Musicals Of 2019

https://soundgirls.org/welcome-to-the-machine-the-story-of-pink-floyds-live-sound/

Getting Back in the Game

Especial Slang | Igualdad y representación

Slang Special | Equality and Representation

Internet Round-Up





https://youtu.be/UmSfDx7vJZg


So You Want To Kiss Her During a Songwriting or Recording Session






SoundGirls Events

Ableton Live for Anybody – 4 Session Online Course

An Evening with Lenise Bent

Bay Area Chapter Monthly Meetings


SoundGirls Opportunities


SoundGirls and SoundGym

Sound Particles Licenses Available

Meyer Sound Supports SoundGirls


SoundGirls Resources


Spotify and SoundGirls Team Up – EQL Directory

SoundGirls – Gaston-Bird Travel Fund

Letter for Trades and Manufacturers


Women-Owned Businesses

A More Inclusive Industry

Events

Sexual Harassment

https://soundgirls.org/about-us/soundgirls-chapters/

Jobs and Internships

Women in the Professional Audio

Member Benefits

X
